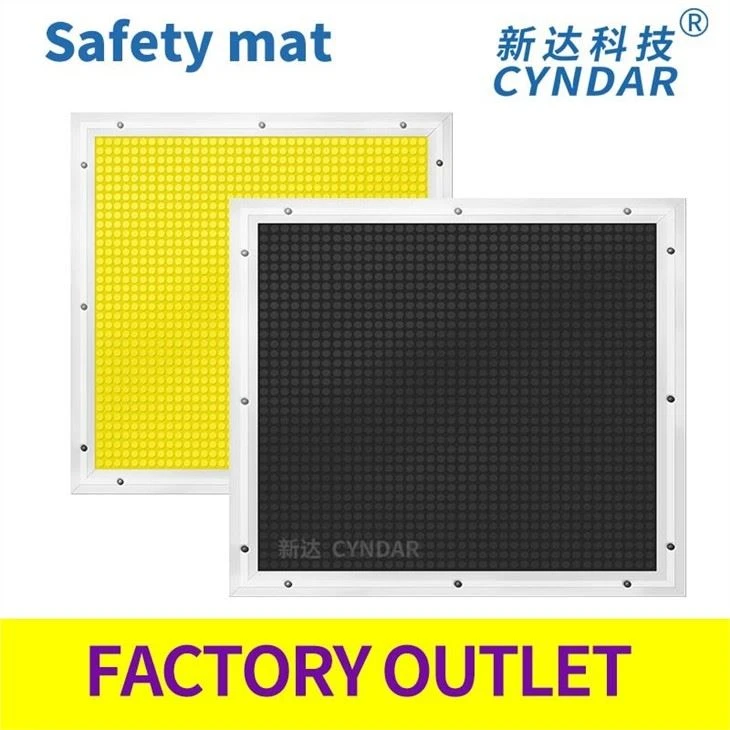

Lub lev kev nyab xeeb yog lub siab - cov cuab yeej tiv thaiv kev nyab xeeb. Thaum lub teeb qhov hnyav tsawg kawg nkaus yog siv rau lub lev kev nyab xeeb, qhov hloov pauv yuav raug kaw, thiab tus maub los yuav xa cov teeb liab nres rau lub tshuab tiv thaiv kom tsis txhob txav mus los. Txhim khu kev tiv thaiv tus neeg teb xov tooj los ntawm ntau yam kev phom sij.
Cov ntaub pua plag kev nyab xeeb tau txais cov khoom hnyav tshwj xeeb- cov khoom siv roj hmab, ib qho -daim tuag- cuam tshuam rau kev cuam tshuam- cov qauv tiv thaiv, yuav tsis tev tawm, muaj kev tiv thaiv zoo heev corrosion ntawm ntau yam acids, alkalis, ntsev thiab lwm yam tshuaj, thiab muaj ib tug dynamic load - bearing muaj peev xwm ntawm 400-800Kg. Lub log yog dov, thiab tus naj npawb ntawm kev ua haujlwm yuav tsum muaj ntau tshaj ib lab. Cov duab ntawm qhov sib txhuam taw tes tso cai rau kev teeb tsa hauv txhua qhov kev taw qhia.
Nta: 1. Txhua qhov loj me tuaj yeem ua ke
2. Have CE certification
3. Use in combination with safety mat controller
Khoom taw qhia:
Sensing ntaub pua plag kev nyab xeeb | PSM4 |
Adaptive nrhiav tau ntau yam | Tshawb xyuas lub xub ntiag ntawm cov neeg ua haujlwm thiab cov khoom |
Cov sijhawm pom zoo | Nws muaj feem xyuam rau kev tiv thaiv kev nyab xeeb ntawm thaj chaw sib xyaw ntawm tib neeg thiab cov tsheb me |
Kev pabcuam ib puag ncig xav tau | Nws yog tsim rau kev siv sab hauv tsev thiab sab nraum zoov, thiab qhov kub thiab txias yog - 10 degree - ntxiv rau 60 degree |
Safety ntaub pua plag thickness | 14 hli |
Cov khoom siv tiv thaiv nto | NBRrubber |
Nto qauv thiab xim | pattern anti-skid surface (black, yellow, red) |
Ntug bandingform | Aluminium kev sib khi |
Muaj kev lag luam | Lub teeb thiab hnyav kev lag luam xws li ntawv kev lag luam, hluav taws xob kev lag luam, automobilewelding ntau lawm kab, forging ntau lawm kab, daim ntawv thov kev lag luam dav dav thiab tsis siv neeg palletizer |
Ordering cov lus qhia | Muab qhov loj ntawm cov ntaub pua plag kev nyab xeeb thiab qhov loj lossis qauv ntawm thaj chaw tiv thaiv kev nyab xeeb |
Qauv specification
PSM4-XXXYYY-Z
1.XXX: Ntev Dimension (unit: mm)
2.YYY: dav dav (unit: mm)
3.z: xim
B: black（Standard color）.R: Red. Y: Yellow.
Nqe lus piav qhia:
Size selection:
Qhov ntau thiab tsawg hauv qab no yog qhov ntau thiab tsawg, lwm qhov ntau thiab tsawg tuaj yeem hloov kho lossis spliced, thov sab laj cov neeg siv khoom kom paub meej
Product Size（mm） | hom tso zis | Cable nkag |
| 300300 | TSIS MUAJ | 4-core hlau |
| 400400 | TSIS MUAJ | 4-core hlau |
| 500250 | TSIS MUAJ | 4-core hlau |
| 600400 | TSIS MUAJ | 4-core hlau |
| 750250 | TSIS MUAJ | 4-core hlau |
| 750500 | TSIS MUAJ | 4-core hlau |
| 750750 | TSIS MUAJ | 4-core hlau |
| 1000500 | TSIS MUAJ | 4-core hlau |
| 1000750 | TSIS MUAJ | 4-core hlau |
| 10001000 | TSIS MUAJ | 4-core hlau |
| 1500500 | TSIS MUAJ | 4-core hlau |
| 1500750 | TSIS MUAJ | 4-core hlau |
| 15001000 | TSIS MUAJ | 4-core hlau |
Technical parameters ntawm kev ruaj ntseg mats:
Tsi | Nws tuaj yeem tsim tshwj xeeb raws li qhov yuav tsum tau ua, nrog qhov ntev ntawm 200mm-1000mm thiab dav ntawm 200mm-3000mm |
Kev ntxhov siab | Dynamic 500kg, khoom 700kg |
Cov ntaub ntawv saum npoo | Roj Hmab (liab / daj / dub yeem) |
Tswj qib | Qhia nrog tus tswj kom ncav cuag qib 3 |
Qib kev tiv thaiv | IP65 |
Ambient kub | -10 degree txog 60 degree |
Thickness | 14mm ib |
Ua zog | Cov neeg laus hnyav 30 kg |
Cable ntev | 3 Mand 5 kev xaiv |
Teb sijhawm | Tsawg dua 30ms |
Qhov hnyav | Txog 30kg / sq.m |
Tshuaj tiv thaiv | Feem ntau |
Khoom muaj peev xwm | Feem ntau |
Kev pab lub neej | Ib lab zaug |
Waterproof | Feem ntau |
Anti mineral acid | Feem ntau |
Anti organic acid | Feem ntau |
Anti cawv | Feem ntau |
Anti ethanol | Feem ntau |
Kev tiv thaiv corrosion | Feem ntau |
Anti petroleumsolvent | Feem ntau |
Anti bio roj hnyav | Feem ntau |
Hom kev tso zis | Tsis yog (ib txwm qhib) |
Qhov siab tshaj plaws voltage | DC 24 V |
Safety Controller Parameters:
| Qauv | Tner -A31 |
Fais fab mov | DC 24 V |
Voltage kam rau ua | ntxiv 10 feem pua /-20 feem pua |
Fais fab pov tseg | 2.9W |
Tso zis | |
Relay kev ruaj ntseg tso zis | 3N 0 plus 1NC |
Transistor teeb liab tso zis | < 500ma=""> |
Relay kev sib cuag muaj peev xwm | |
AC-1 | 6A / 250VAC / 1500V Cov |
AC-15 | 4A / 240VAC tso zis |
DC-1 | 6A / 24VDC / 150W |
DC-13 | 4A / 24VDC fais fab mov |
Muaj peev xwm hloov siab tshaj plaws | 12A (tshwj xeeb rau txhua qhov kev tiv thaiv kev nyab xeeb) |
Tiv tauj tiv thaiv | <> |
Yam tsawg kawg nkaus load | 10mA / 5V |
Tiv tauj cov ntaub ntawv | AgSn02 plus 0.2pmAu |
Yog xav paub ntxiv, thov rub tawm phau ntawv tswj kev nyab xeeb
Khoom duab
 |  |  |
FAQ
Q1: Koj puas yuav kuaj tag nrho cov khoom ua ntej xa khoom? A
Teb: Yog, peb muaj 100 feem pua kev kuaj xyuas lub Hoobkas, kev kuaj kev laus thiab kev tiv thaiv - cuam tshuam rau txhua lub tshuab.
Q2: Koj ua li cas kom muaj kev sib raug zoo nrog peb lub lag luam ntev?
Teb: 1. Peb cov khoom zoo thiab cov nqi sib tw yog qhov tseem ceeb tshaj plaws los tswj peb lub sijhawm ntev - kev sib raug zoo nrog peb cov neeg siv khoom.
2. Good service is our basic principle for every customer.
Q3. Cov qauv ntawm koj cov nqe lus yog dab tsi?
Teb: Peb tuaj yeem xa koj cov qauv, tab sis tus nqi coj mus kuaj thiab kev thauj khoom yuav raug them.
Q4. Thaum twg yuav xa tuaj tau?
Teb: Feem ntau, nws yuav siv sijhawm 2-5 hnub ua haujlwm rau cov qauv xa tuaj tom qab tau txais qhov tso nyiaj.
Q5: Koj txoj cai qauv yog dab tsi? A
Teb: Yog tias muaj qhov chaw, peb tuaj yeem muab cov qauv, tab sis cov neeg siv khoom yuav tsum them tus nqi coj mus kuaj thiab tus nqi xa khoom sai.
